Application of closed magnetic slide conveyors

Magnetic slide conveyors are suitable for the disposal of steel parts such as punching waste, chips, nails, bolts, recycled materials or drilling waste in metal and steel plants and the sheet metal industry.

Advantages of a magnetic slide conveyor

• no belt wear
• low maintenance
• no material can be left behind due to the closed construction
• no damage to product and conveyor belt
• dirt and moisture have no effect on operation
• completely closed; no moving parts on the outside

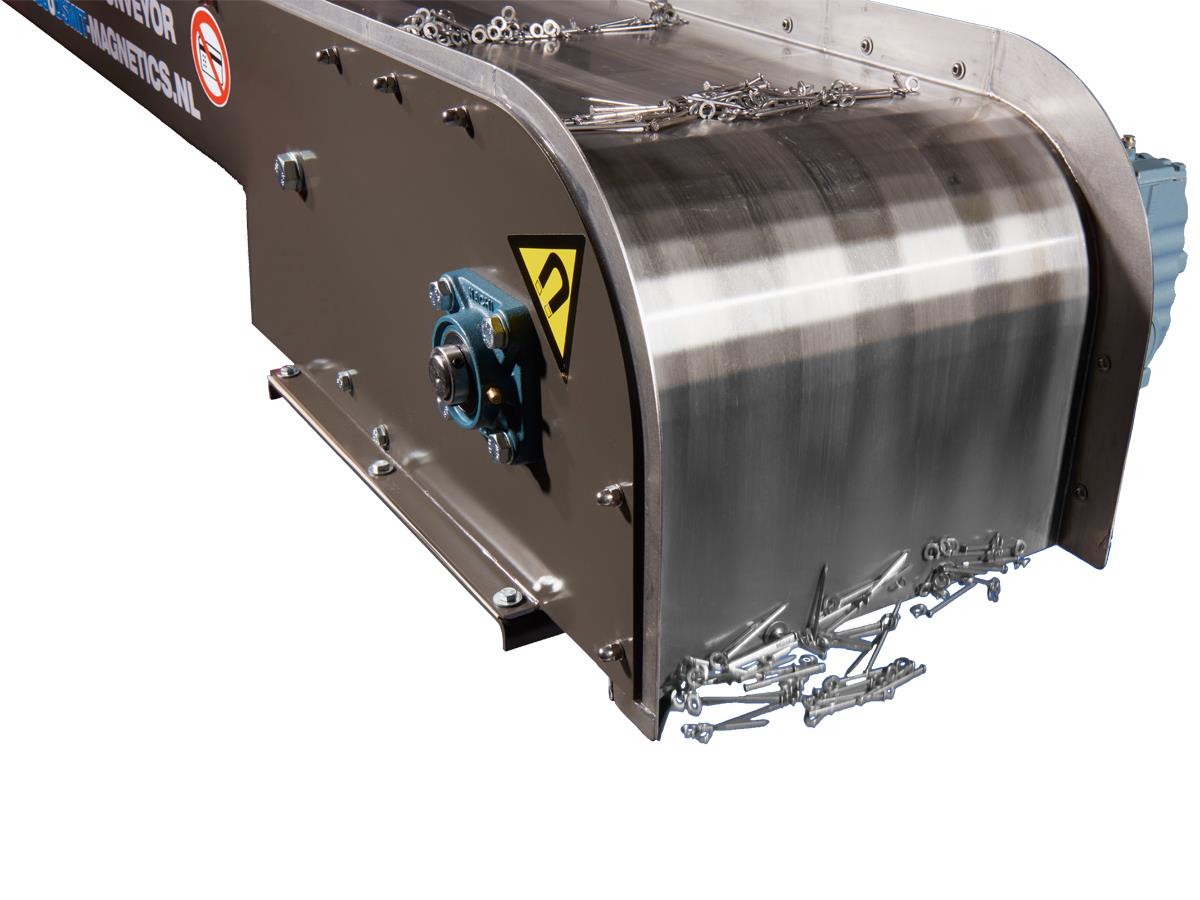

Operation of a slide conveyor

Below a stationary stainless steel slide plate are magnets mounted equidistantly on a chain. The chain is driven. Thus, the magnets move the steel parts over the slide plate and discharge them on the discharge side - at the desired height.

Types

Swan neck slide conveyor

• for the transport of ferromagnetic parts such as punch scrap, nails, bolts, recycled materials or drilling swarf
• maximum conveyor width: 575 mm
• conveyor length: up to 15 m as required
• maximum lift: 12 m
• capacity: 9 - 42 kg/min (punching waste Ø7x1 mm; 18m/min; with magnet spacing 600 mm)
• steep 60° lifting angle

Big neck magnetic slide conveyor

• for transporting long ferromagnetic parts such as nails, de-burring and press remains
• maximum conveying width: 475 mm
• conveying length: as desired, up to 15 m
• maximum conveying height: 12 m
• capacity: 14 - 35 kg/min (punch scrap Ø7x1 mm; 18 m/min; with 600 mm magnet spacing)
• steep angle of rise of 60 degrees

Flat magnetic slide conveyor

• for transporting ferromagnetic parts such as punch scrap, chips, nails, bolts, recycled materials or drilling swarf
• maximum conveying width: 575 mm
• conveying length: as desired, up to 15 m
• capacity: 14 - 42 kg/min
  (for punch scrap Ø7x1 mm; at 18 m/min; with a magnet distance of 600 mm)

Magnetic mini flat bed slide conveyor

• for transporting small ferromagnetic parts such as punch scrap and punched products
• maximum conveying width: 314 mm
• conveying length: as desired, up to 4 m
• capacity: 9 - 20 kg/min (punch scrap Ø7x1 mm; 19 m/min; with 200 mm magnet spacing)
